Cabinet protection level IP54
PACK-level fire prevention
Inter-cluster cell temperature difference≤5℃
Service life up by 20% or higher compared with air cooling
Free installation as required by sites
Fire isolation safety design

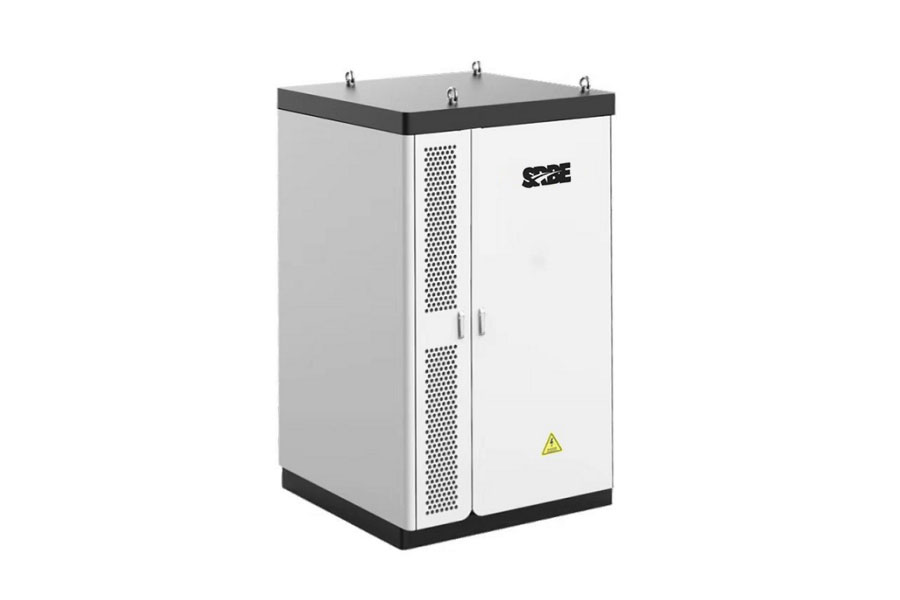

| Parameters | Liquid-cooled outdoor energy storage cabinet 300kwh |
|---|---|
| Rated voltage (V) | 1075.2 |
| Rated capacity (kWh) | 301 |
| Rated power (kW) | 150 |
| Maximum charge-discharge ratio | 1C |
| Series-parallel number of system | IP3365 |
| Series quantity of liquid cooling module | 7 |
| Protection level | IP54 |
| Cabinet dimension (W*D*H)mm | 1400×1300×2300 |
| Weight (kg) | 2700 |
| Working ambient temperature (℃) | 0~50 |
| Communication interface | RS485, CAN, Ethernet |
| Designed life (years) | ＞15 |
