Stacked lithium battery system

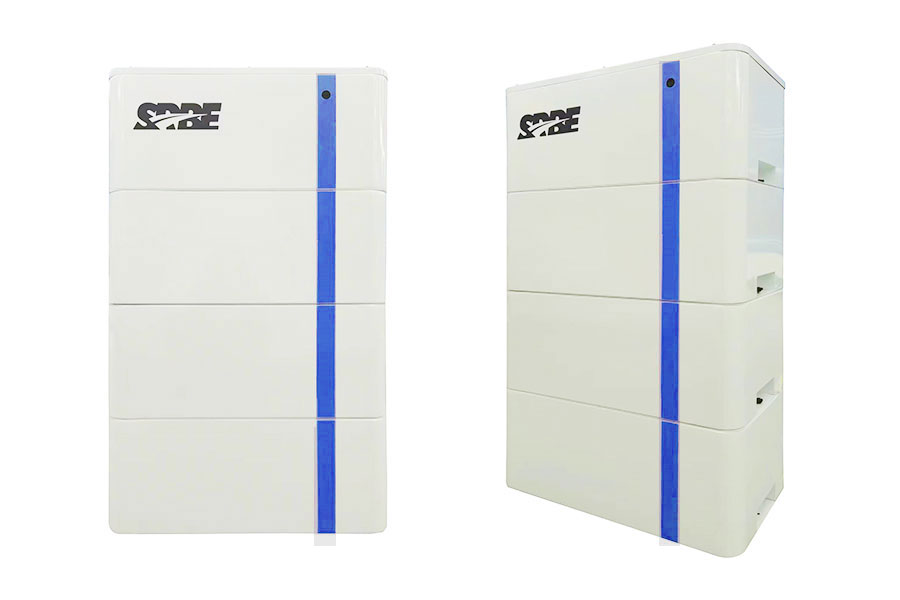

A kind of modular expandable lithium-ion battery storage system. This system can be built as quickly as a pile of bricks, and consists of brick batteries and energy control boxes. Brick batteries are stacked one by one, and energy control boxes are placed on top of brick batteries, making it easy to add all these up and shaping an energy system for users
Performance characteristics
● Easy installation
Modular fast plug-in connection with no wiring and installation efficiency up by 70%
● Safety
Safe LFP battery with a service life of up to 10 years
● Environmental adaptability
Protection level IP54
● Multi-functions
Energy control box can control 2-6 stacked battery packs in series
● Remote update
Intelligent operation and maintenance
● Battery control box
A battery control box of 2-6 stacked battery packs connected in series for battery charge or discharge control and abnormal alarm.
● Battery pack
Battery module with energy content of 5120Wh
● Base
Support plate of brick batteries
Application scenarios
High electricity rate areas
High subsidy areas
Unstable grid areas
Small enterprises
Single battery pack parameter notes
|
Items
|
Parameters
|
Remarks
|
|
Standard capacity
|
50Ah
|
25±2℃，0.5C，New battery status
|
|
Minimum capacity
|
50Ah
|
25±2℃，0.5C，New battery status
|
|
Rated working voltage
|
102.4V
|
1P32S
|
|
Operating voltage range
|
80.0V～116.8V
|
Temperature T>0℃, theoretical value
|
|
Power amount
|
5120Wh
|
25±2℃，0.5C，New battery status
|
|
Dimension
|
600（±0.8）
380（±0.6）
222（±1.0）
|
|
|
Weight
|
49±0.5kg
|
|
System parameter specification
|
Rated current
|
0.5C@50Ah
|
|
Maximum energy
|
30.72kWh
|
|
Stacked battery pack quantity
|
2≤N≤6
|
|
Maximum size (width×depth×height)
|
600×380×1576mm
|
|
Maximum weight
|
330kg
|
|
Protection level
|
IP65
|
|
Cooling mode
|
Natural heat dissipation
|
